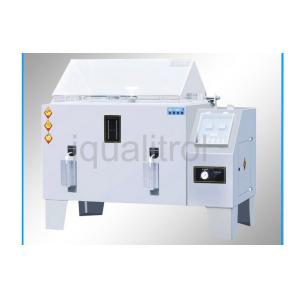

High Performance CASS Test Salt Spray Testing Chamber with Gray
Color PP Board
Brief Introduction:
The AHL Series Salt Spray Test Chamber is used to test the
anti-erosion quality of the surface of all materials after the
rust-proof of painting, coating, electroplating, anoding and
rust-proof of greasing anti corrosion treatment for a variety of
materials, corrosion resistance of their products.
Salt Spray Test Chamber can be subjected to neutral salt spray test
(NSS), Acetate Salt Spray Test (ACSS), Copper salt accelerated salt
spray test (CASS).
Technical Specifications:
Please Note Small Type of 60 and 90 do not meet standard of ASTM
B117.
| Button Model | AHL-60 -SS | AHL-90 -BS | AHL-120 -NS | AHL-160-NS | AHL-200 -NS |
LCD touch screen Model | AHL-60 -TS | AHL-90 -TS | AHL-120 -TS | AHL -160-TS | AHL-200 -TS |
| Inner size (mm) | W | 600 | 900 | 1200 | 1600 | 2000 |
| D | 450 | 600 | 850 | 850 | 950 |
| H | 400 | 500 | 500 | 550 | 600 |
| External size (mm) | W | 1130 | 1460 | 1900 | 2300 | 2700 |
| D | 630 | 910 | 1150 | 1150 | 1350 |
| H | 1070 | 1280 | 1500 | 1550 | 1600 |
| Lab Capacity(L) | 108 | 270 | 480 | 800 | 1440 |
| Saline Capacity(L) | 15 | 25 | 90 | 90 | 120 |
| Inside Temperature | (NSS ACSS) Test temperature : 35°C±1°C |
| (CASS) Test temperature : 50°C±1°C |
| Pressure Bucket Temperature | (NSS ACSS) Test temperature : 47°C±1°C |
| (CASS) Test temperature : 63°C±1°C |
| Brine Temperature | (NSS ACSS) Test temperature : 35°C±1°C |
| (CASS) Test temperature : 50°C±1°C |
| Test solution | NSS: pure water + NaCl (PH6.5~7.2) |
| CASS: Pure water + NaCl + CuCl (PH3.0~3.2) |
Compressed Air
Pressure | 2kgf/cm2 | 2kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 |
| Power | AC 220V , 15A,1Ф, 50HZ |
Optional Accessories:
1. Control Panel : Key panel / LCD panel (optional)
2. Working way: steam heating type / air heating type (optional)
3. Salt concentration meter
4. Air compressor
Features:
1. The machine is made of imported PP rigid plastic plate, with
solid and firm structure, acid and alkali resistance, high
temperature resistance, corrosion resistance and never aging,
suitable for neutral salt spray NSS, acetic acid test, acetic acid
CASS and other tests Claim.
2. The use of precision plastic nozzle and conical spray device,
fog uniform, fast, nozzle long life, no crystallization.
3. Using LCD touch screen, can be connected with the computer to
achieve remote monitoring and operation, any switch in English.
4. comes with USB interface, you can insert the U disk download
curve, historical data (can replace the recorder) (optional)
5. Spray time can be controlled internally without additional time
relay.
6. Through the flow meter, high pressure valve to adjust the salt
flow and compressed air pressure to ensure uniform salt fog
settlement.
7. The use of manual water system, water level is insufficient with
automatic replenishment function to ensure that the test is not
interrupted.
Test Standards:
1. GB/T 10125-1997 salt spray test
2. GB/T 10587-2006 salt spray test
3. GB/T 1771-2007 salt spray test
4. ASTM B117-97 salt spray test
5. GB10593.2-1990 salt spray test
6. QB/T 3826-1999 salt spray test
7. QB/T 3827-1999 salt spray test
8. GB/T 12967.3-2008 salt spray test
9. CNS 4158 salt spray test
10. CNS 4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray
test
ISO-9227, ASTM-B117, JIS-D0201, H8502, H8610, Z2371, GB/T10125
