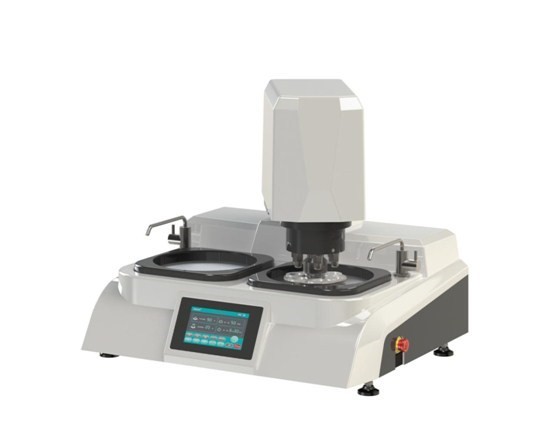

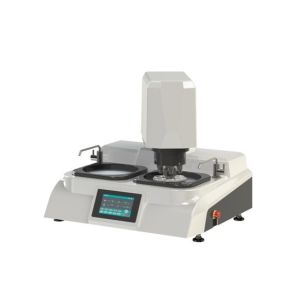

Single Pneumatic Automatic Metallographic Specimen Grinding and
Polishing Machine Clamp 4 Samples simultaneously
Technical Data Download: iqualitrol
HMP-2C
Brief Introduction:
Iqualitrol HMP-2C is a double-disc automatic grinding and polishing
machine integrating pre-grinding, grinding and polishing. It is
controlled by a high-end touch screen, the grinding and polishing
plate is driven by a three-phase silent motor, and a V-belt is used
for transmission.
Iqualitrol HMP-2C grinding head is driven by a stepping motor and a
synchronous belt is used for transmission.
Iqualitrol HMP-2C has the characteristics of stable rotation, low
noise, safety and reliability; Adjust the rotation speed of the
grinding head and the grinding and polishing plate, set the
pressure and sample preparation time by yourself, to adapt to
different needs; built-in lighting system, convenient to take and
place the sample; built-in cooling device, can cool the sample
during grinding, In order to prevent damage to the metallographic
structure due to overheating of the sample.
Iqualitrol HMP-2C is an ideal choice for metallographic sample
preparation equipment in factories, scientific research units and
laboratories of universities and colleges.
Technical Specifications:
| Product model | HMP-2C |
| Number of grinding discs | 2 |
| Diameter of grinding and polishing disc | 254mm |
| Rotation speed of grinding and polishing plate | Stepless speed regulation: 100-1000rpm Four-speed speed regulation: 300, 500, 800, 1000rpm |
| Rotation direction of grinding and polishing disc | Two-way forward and reverse |
| Rotation direction of grinding head | clockwise |
| Rotating speed of grinding head | 0—120r/min |
| Grinding head motor | Stepping motor 200W |
| Grinding head locking method | Automatic |
| Timing adjustable time | 0-99min |
| Pressure method Center | Single point pneumatic pressure |
| Pressurized pressure | 0-0.5Mpa (Commonly used 0.2-0.3Mpa) |
| Number of specimen clamps | 4pcs |
| Clamping sample thickness | 8-22mm(customizable) |
| Specimen clamping specifications | Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special
specifications can be customized) |
| power supply | 220V 50Hz |
| Appearance size | 755*660*710mm |
| weight | 100kg |
