| Brand Name : | iqualitrol |
| Model Number : | VHBS-3000T |
| Certification : | |
| Price : | |
| Payment Terms : | T/T |
| Supply Ability : | 20 Sets per Month |
| Delivery Time : | 3 Working Days |

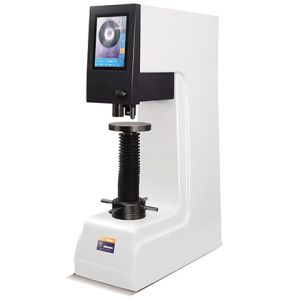

Visual Touch Screen Brinell Hardness Testing Machine with Built-in Measure Software
Technical Specifications:
| Model | VHBS-3000T |
Range of Measurement | 5-650HBW |
| Test Force | 306.25N, 612.9N, 980.7N, 1225.9N, 1838.8N, 2415.8N, 4903.5N, 7355.3N, 9807N, 14710.5N, 29421N (31.25, 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf) |
| Maximum Height of Specimen | 260mm |
| Distance between Indenter Center and Wall | 165mm |
| Objectives | 1X, 2X |
| Magnification | 20X, 40X |
| Hardness Resolution | 0.1HBW |
| Camera | 3MP |
| Dwell Time | 0-99 Seconds, adjustable |
| Indentation Measure | Manually Measure Indentation Diameter |
| Power Supply | AC 220V/50Hz |
| Dimension | 700*300*930mm |
| Weight | 140kg |
|
